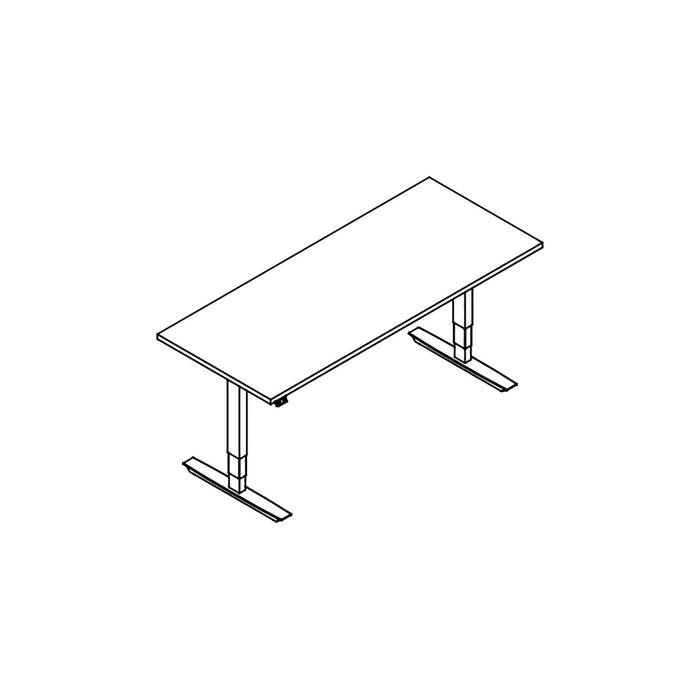

ML Series - Rectangular, 3 Stage, 2 Leg, 72" W | 5322472H

The ML Series Rectangular 72"W desk frame provides a reliable, height-adjustable foundation for large workstations. Designed for offices and collaborative spaces that prioritize ergonomic flexibility and durable construction, it offers smooth sit-stand transitions across two- or three-stage configurations.

Highlights

• Width and frame range: 72" wide with expandable bases that fit 40"–68" floor frames, accommodating 48"–72" worksurfaces.
• Height range and configurations: 2-stage with 19.6" travel from 28" to 47.6" and 3-stage with 25.5" travel from 24.5" to 50" (both measured with feet and worksurface).
• Speed: 2-stage adjustment at 0.75 inches per second; 3-stage adjustment at 1.5 inches per second.
• Power and controls: 110V, 60Hz AC input powering a 120V DC motor; standard UP/DOWN control; optional LED 4-position preset control.
• Surfaces: 1 1/8 inch thick high-pressure laminate surface with a 3 mm PVC edge; square corners by default, with T-Mold radiused corners available as an option.
• Keyboard surface: Optional mechanism extends keyboard range up to 8 inches below and 7 inches above the monitor surface.
• Construction: Heavy-duty all-steel legs with expandable frames; silver metallic powder coat finish.
• Load capacity: 220 pounds for 2-column models and 350 pounds for 3-column models.
• Standards and certifications: ADA and BIFMA performance standards; Intertek VOC+ Certification.
