Safco  |  SKU: 5323066H

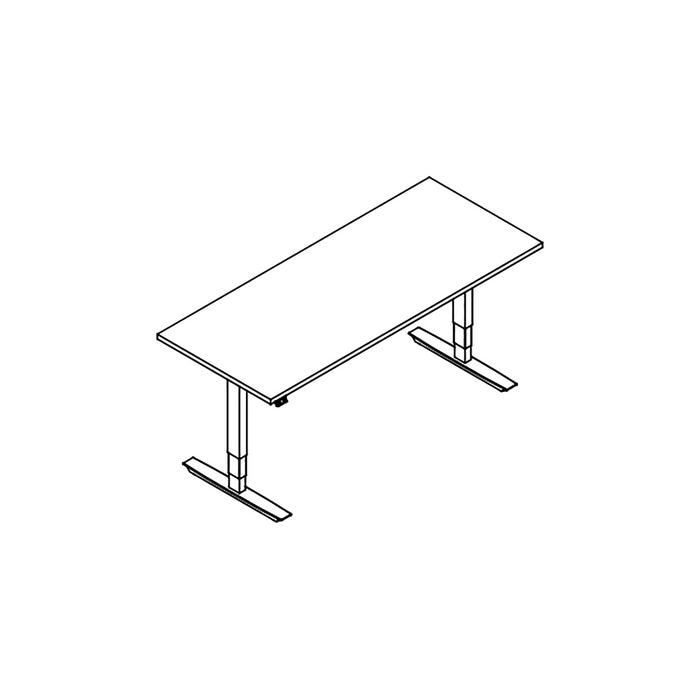

ML Series - Rectangular, 3 Stage, 2 Leg, 66" W | 5323066H

$1,464.58

The ML Series Rectangular Desk Frame is a wide, two-leg height-adjustable base designed for large workspaces. With a 66" width and sturdy steel construction, it supports ergonomic height transitions from seated to standing without compromising stability.

Highlights

  • 66" wide rectangular frame that accommodates 48"–72" worksurfaces; frame range 40"–68" to fit your setup.
  • Three-stage height adjust from 24.5" to 50" with feet and worksurface, providing 25.5" of vertical travel.
  • Height-adjustment speed up to 1.5" per second for quick transitions between sitting and standing.
  • Drive system: 110V, 60Hz AC input powering a 120V DC motor; draws up to 3A.
  • Load capacity up to 220 lbs for 2-column frames, ensuring solid support for your desk configuration.
  • Standard UP/DOWN control switch; optional LED 4-position preset control for quick height recall.
  • Surfaces: 1 1/8" thick high-pressure laminate with a 3mm PVC edge; square corners, with optional T-Mold radiused corners.
  • Keyboard surface: Optional mechanism extends keyboard range to 8" below and/or 7" above the monitor surface; tilt range ±15° for comfortable typing.
  • Base construction and finish: Heavy-duty all-steel legs with expandable frames; silver metallic powder coat.
  • Standards and certifications: ADA and BIFMA performance standards; Intertek VOC+ certification for low emissions.
  • Ideal for open-plan offices, design studios, and conference spaces needing a wide, reliable height-adjustable desk base.

Shipping & Returns

We make ordering office furniture easy and risk-free:

  • Shipping is always FREE on all orders within the contiguous United States, with No minimum purchase necessary! Read Policy
  • Need to make a return?
    We offer a clear and straightforward process. Read Policy

Dimensions

Dimensions Overall: 66"W x 30"D x 24.5 - 50"H

Downloads

* Click item names to download individually or check the boxes and click Download Selected to get a zip copy of multiple files.

Line Drawing
Assembly Instructions

Warranty

LIMITED LIFETIME WARRANTY
Safco® warranty obligation: We pledge to repair or replace, at Safco’s option, any Safco product or component that is defective in material or workmanship for as long as you, the original purchaser, own it. This warranty is subject to the provisions below.

LIABILITY LIMITATIONS
The following listed parts, components and supplies are covered under warranty in accordance with the below schedule following the product purchase date.

  • Three Years: Outdoor Products (Evos™, Canmeleon™ and CoGo™ Product Lines), High Density 4-Post wire shelving and wire components, electrical components and Dry Erase Surfaces.
  • Five Years: Glides, casters, polymer-based components, seating upholstery (fabrics and leather), foam, armrests, chrome seating components, user-adjustable work surface mechanisms, laminates, veneer finishes and other covering materials, drawer glides, electrical components, cabinets or mobile systems, components that are either moving parts or controls (guides that are in contact with moving parts), and motors on the ML-Series Height-Adjustable Tables.
  • Ten Years: Seating controls and cylinders, Rumba™, Cha-Cha™, Electric Height-Adjustable Table series laminates, and wood seating components. All parts (excluding motor) on the ML Series Height-Adjustable Tables.

WARRANTY SUBJECT TO EXCLUSIONS

Exclusions pertaining to this warranty are as follows but are not limited to:

  • Normal wear and tear.
  • Product or product components utilized with the intent to rent or lease.
  • Freight damages: Safco is not liable for any product damages sustained during shipping or handling operations. Safco provides specific policies and requirements regarding shipping and handling, and reserves the right to review and address product distribution matters separately.
  • Product negligence: A product is not considered defective due to misuse or improper installation. Safco products must be installed, used and maintained in accordance with product instructions and warnings.
  • Alterations or attachments to the product that were not approved by Safco.
  • All COM fabric is not covered under this warranty.
  • All corrugated products or components.
  • Use of non-multiple shift products for multiple shifts.
  • Products purchased througha discontinued products promotion/liquidation

Safco's warranty obligation is limited to normal use upon receipt of our products.

SEATING USAGE
Normal commercial usage for seating is defined as the equivalent of a single shift, forty (40) hour work week. To the extent that a seating product is used in a manner exceeding this, the applicable warranty period will be reduced in a pro-rata manner.

Models warranted for multiple shifts:

  • Task Master® Industrial Series
  • Soft Tough™ Series
  • WorkFit™ Polyurethane Series
  • Uber™ Series (500 lbs.)
  • Alday™ Intensive-Use (500 lbs.)
  • Vue™ Intensive-Use (500 lbs.)
