Safco  |  SKU: 5348DLH

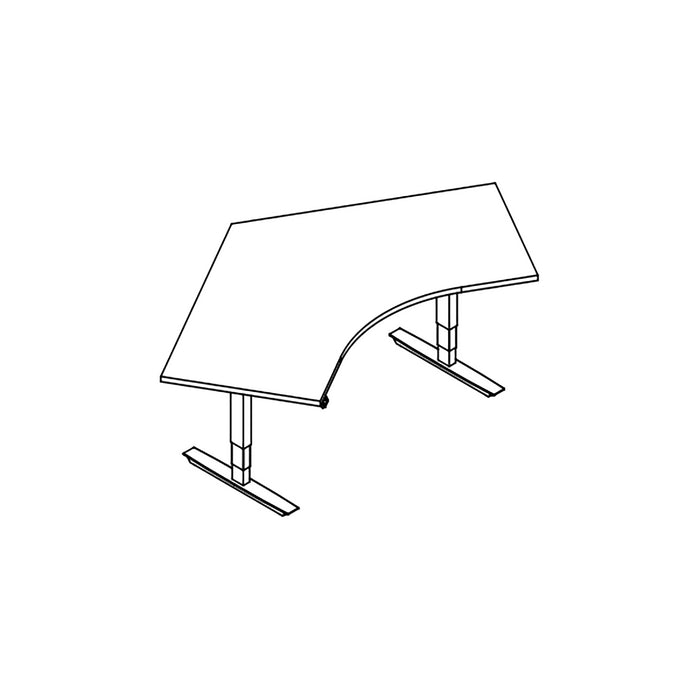

ML Series - 120 Degree, 3 Stage, 2 Leg | 5348DLH

$1,657.02

The ML Series 120 Degree, 3 Stage, 2 Leg height-adjustable workstation provides dependable sit-to-stand versatility for shared office, lab, and educational spaces. Built with heavy-duty steel frames and configurable surfaces, it delivers smooth, safe height adjustment and flexible surface options to fit 48"–72" worksurfaces.

Highlights

  • Drive system: 110 V AC input (60 Hz) powering a 120 V DC motor with a maximum draw of 3 A.
  • Travel range: 2-stage offers 19.6 inches of vertical adjustment from 28 to 47.6 inches (with feet and worksurface); 3-stage offers 25.5 inches of adjustment from 24.5 to 50 inches (with feet and worksurface).
  • Adjustment speed: 2-stage at 0.75 inches per second; 3-stage at 1.5 inches per second.
  • Control options: standard UP/DOWN control switch; LED four-position preset control available as an accessory.
  • Worksurface: 1 1/8 inch high-pressure laminate with 3 mm PVC edge; square corners; optional T-Mold radiused corners.
  • Keyboard surface: optional mechanism extends keyboard range to 8 inches below and/or 7 inches above the monitor surface.
  • Tilt range: +15 degrees to -15 degrees for versatile viewing and typing angles.
  • Bases and frame: heavy-duty all-steel legs with expandable/adjustable frames; frame width 40–68 inches to support 48–72 inch worksurfaces; silver metallic powder coat finish.
  • Load capacity: 220 pounds for 2-column models; 350 pounds for 3-column models.
  • Compliance and certification: meets ADA and BIFMA performance standards; Intertek VOC+ Certification.

Shipping & Returns

We make ordering office furniture easy and risk-free:

  • Shipping is always FREE on all orders within the contiguous United States, with No minimum purchase necessary! Read Policy
  • Need to make a return?
    We offer a clear and straightforward process. Read Policy

Dimensions

Dimensions Overall: 48"W x 30"D x 24.5 - 50"H

Downloads

* Click item names to download individually or check the boxes and click Download Selected to get a zip copy of multiple files.

Line Drawing
Assembly Instructions

Warranty

LIMITED LIFETIME WARRANTY
Safco® warranty obligation: We pledge to repair or replace, at Safco’s option, any Safco product or component that is defective in material or workmanship for as long as you, the original purchaser, own it. This warranty is subject to the provisions below.

LIABILITY LIMITATIONS
The following listed parts, components and supplies are covered under warranty in accordance with the below schedule following the product purchase date.

  • Three Years: Outdoor Products (Evos™, Canmeleon™ and CoGo™ Product Lines), High Density 4-Post wire shelving and wire components, electrical components and Dry Erase Surfaces.
  • Five Years: Glides, casters, polymer-based components, seating upholstery (fabrics and leather), foam, armrests, chrome seating components, user-adjustable work surface mechanisms, laminates, veneer finishes and other covering materials, drawer glides, electrical components, cabinets or mobile systems, components that are either moving parts or controls (guides that are in contact with moving parts), and motors on the ML-Series Height-Adjustable Tables.
  • Ten Years: Seating controls and cylinders, Rumba™, Cha-Cha™, Electric Height-Adjustable Table series laminates, and wood seating components. All parts (excluding motor) on the ML Series Height-Adjustable Tables.

WARRANTY SUBJECT TO EXCLUSIONS

Exclusions pertaining to this warranty are as follows but are not limited to:

  • Normal wear and tear.
  • Product or product components utilized with the intent to rent or lease.
  • Freight damages: Safco is not liable for any product damages sustained during shipping or handling operations. Safco provides specific policies and requirements regarding shipping and handling, and reserves the right to review and address product distribution matters separately.
  • Product negligence: A product is not considered defective due to misuse or improper installation. Safco products must be installed, used and maintained in accordance with product instructions and warnings.
  • Alterations or attachments to the product that were not approved by Safco.
  • All COM fabric is not covered under this warranty.
  • All corrugated products or components.
  • Use of non-multiple shift products for multiple shifts.
  • Products purchased througha discontinued products promotion/liquidation

Safco's warranty obligation is limited to normal use upon receipt of our products.

SEATING USAGE
Normal commercial usage for seating is defined as the equivalent of a single shift, forty (40) hour work week. To the extent that a seating product is used in a manner exceeding this, the applicable warranty period will be reduced in a pro-rata manner.

Models warranted for multiple shifts:

  • Task Master® Industrial Series
  • Soft Tough™ Series
  • WorkFit™ Polyurethane Series
  • Uber™ Series (500 lbs.)
  • Alday™ Intensive-Use (500 lbs.)
  • Vue™ Intensive-Use (500 lbs.)
